PART NO. PART DRAWING DESCRIPTION LENGTH
15017 product image 2" Vertical
Narrow Style Hinge Rail		 16.6'
15034 product image 3 ¾" Vertical
Medium Style Hinge Rail		 16.6'
15089 product image 5" Vertical
Wide Style Hinge Rail		 16.6'
15023 product image 2" Vertical
Narrow Style Flushbolt Rail		 16.6'
15046 product image 3 ¾" Vertical
Medium Style Flushbolt Rail		 16.6'
15090 product image 5" Vertical
Wide Style Flushbolt Rail		 16.6'
15067 product image 2" Vertical
Narrow Style Lock Set Rail		 16.6'
15072 product image 3 ¾" Vertical
Medium Style Lock Set Rail		 16.6'
15091 product image 5" Vertical
Wide Style Lock Set Rail		 16.6'
15016 product image 3 ½"
Narrow Style Bottom Rail		 16.6'
15033 product image 6 ½"
Medium Style Bottom Rail		 16.6'
15092 product image 8 ½"
Wide Style Rail		 16.6'
PART NO. PART DRAWING DESCRIPTION LENGTH
15048 product image 3/8"
Mid-Rail Muntin Bar		 16.6'
15053 product image 2"
Mid-Rail Muntin Bar		 16.6'
15054 product image ¼"
Square Door Moulding		 16.6'
15055 product image 1"
Square Door Moulding		 16.6'
product image Adjustable Astraqal
15058 product image Push Bar 12'
15043 product image Pull Bar 12'
PART NO. PART DRAWING DESCRIPTION LENGTH
15028 product image 2" x 4 ½"
Single Pocket Tube 1"		 24'
15029 product image 2" x 4 ½"
Double Pocket Tube 1"		 24'
15030 product image 2" x 4 ½"
Still Tube 1"		 24'
15031 product image 1" Sill Cap 24'
15099 product image 1" Snap in Pocket Back Tube 24'
15101 product image 2" x 4 ½"
Single Pocket Open Back 1"		 24'
15102 product image 2" x 4 ½"
Sill Tube Open Back 1"		 24'
15107 product image 2" x 4 ½"
Single Pocket Open Back Screw Spline		 24'
15032 product image 1" Snap in Door Stop 24'
15086 product image 1" Pocket Filler 24'
15087 product image 4 ½" x 4 ½"
High Base Sill 1"		 24'
15098 product image 2" x 4 ½"
No Pocket Tube		 24'
EVR-002 product image 4 ½" x 4 ½"
Single Pocket Half Corner Post 1"		 24'
EVR-008 product image 4 ½" x 4 ½"
Flat Half Corner Post 1"		 24'
EVR-009 product image 4 ½" x 4 ½"
Double Pocket Half Corner Post 1"		 24'
15035 product image 1" Sill Clip 24'
15036 product image 1" Pocket Clip 24'
PART NO. PART DRAWING DESCRIPTION LENGTH
EVR-043 product image 2" x 4 ½" Thermally Broken
Sill Tube 1"		 24'
EVR-044 product image 2" x 4 ½" Open Back Thermally Broken
Sill Tube 1"		 24'
EVR-041 product image 2" x 4 ½" Open Back Thermally Broken
Single Pocket Tube 1"		 24'
EVR-040 product image 1" Thermally Broken
Pocket Snap Back		 24'
PART NO. PART DRAWING DESCRIPTION LENGTH
15003 product image 1 ¾" x 4 ½"
Single Pocket Tube		 24'
15004 product image 1 ¾" x 4 ½"
Double Pocket Tube		 24'
15006 product image 1 ¾" x 4 ½"
Sill Tube		 24'
15007 product image ¼"
Sill Cap		 24'
15049 product image 1 ¾" x 4 ½"
Snap in Pocket Back Tube		 24'
15120 product image Flat Snap Back 24'
15050 product image 1 ¾" x 4 ½"
Single Pocket Open Back		 24'
15056 product image 1 ¾" x 4 ½"
Sill Tube Open Back		 24'
15051 product image ¼"
Snap in Door Stop		 24'
15069 product image ¼"
Pocket Filler		 24'
15088 product image 4 ½" x 4 ½"
High Base Sill		 24'
15097 product image 1 ¾" x 4 ½"
No Pocket Tube		 24'
EVR-045 product image 4 ½" x 4 ½"
Single Pocket Half Corner Post
¼"		 24'
EVR-046 product image 4 ½" x 4 ½"
Double Pocket Half Corner Post
¼"		 24'
EVR-008 product image 4 ½" x 4 ½"
Triple Pocket Corner Post
¼"		 24'
15009 product image ¼"
Sill Clip		 6'
15010 product image ¼"
Pocket Clip		 6'
PART NO. PART DRAWING DESCRIPTION LENGTH
G-3 product image ¾" x ¾" Angle
1/16" Thick		 24'
G-20 product image 1" x 1" Angle
1/16" Thick		 24'
G-180 product image 1 ½" x 1 ½" Angle
1/16" Thick		 24'
G-177 product image 2" x 2" Angle
1/16" Thick		 24'
G-178 product image 1" x 2" Angle 24'
PART NO. PART DRAWING DESCRIPTION LENGTH
15011 product image 4 ½" Flat Groove Fascia 24'
PART NO. PART DRAWING DESCRIPTION LENGTH
15008 product image 4" Saddle 16.6'
15059 product image 7" Saddle 16.6'
15105 product image 5 ½" Saddle 16.6'
PART NO. PART DRAWING DESCRIPTION LENGTH
SE98 product image 1" x 1" Square Tube 24'
4243 product image 1 ¾" x 1 ¾" Square Tube 24'
4244 product image 1 ¾" x 4" No Fin Tube 24'
15001 product image 1 ¾" x 4" Single Fin Tube 24'
15002 product image 1 ¾" x 4" Double Fin Tube 24'
4245 product image 4" x 4" Square Tube 24'
4109 product image 2" x 6" Rectangle Tube 24'
3139 product image ½" x ½" Glass Moulding w/Holes 24'
P29 product image 1" x 1" x 1" Channel 24'
PART DRAWING NAME
product image Butt Hinge

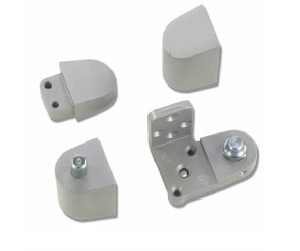

product image Top and Bottom Pivots

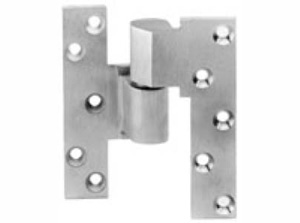

product image Center Pivot

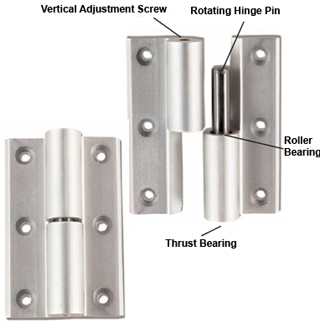

product image Easy Hinge Set
product image Hinge Back Plate

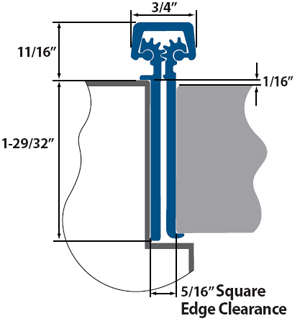

product image Full Mortise Hinges 83" & 95"

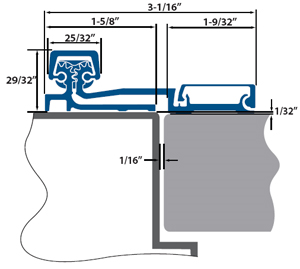

product image Full Service Hinges 83" & 95"
PART DRAWING NAME
product image Commercial Lever Handle
product image European Lever Handle
product image Push Paddle
product image Electric Strike

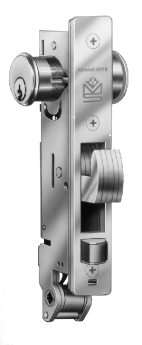

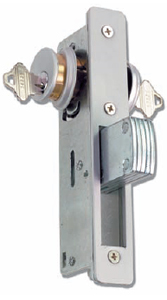

product image Deadbolt Lock

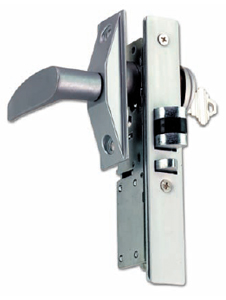

product image Latch Lock
product image Hook Lock
product image Deadbolt & Latch Lock
product image Cylinders
product image Thumb Turn
product image Dummy Cylinder
product image Faceplate
product image Strike Plate

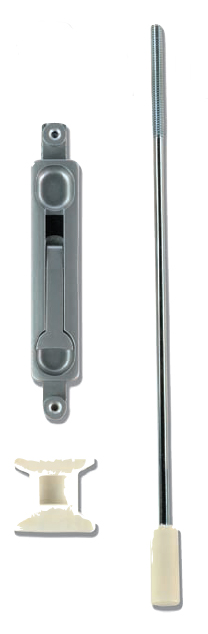

product image Flush Bolt
product image Cylindrical Lock
PART DRAWING NAME
product image Electrolatch
product image Enduralatch Trim

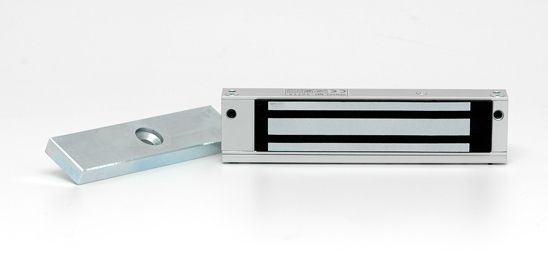

product image Header Magnetic Lock

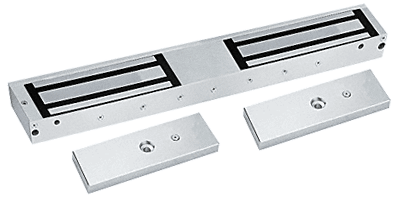

product image Double Header Magnetic Lock
PART DRAWING NAME

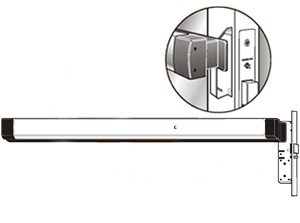

product image Mortise Exit Device
product image Concealed Vertical Rod Exit Device
product image Exit Only Crash Bar
PART NUMBER PART DRAWING DESCRIPTION
130-50-202 product image 2" x 3½" x 24' Curtain Wall Tube
130-50-203 product image 2" x 4¾" x 24' Curtain Wall Tube
130-50-300 product image Pressure Plate Mill Finish 16.6'
130-50-302 product image Snap on Cover 24'
product image
